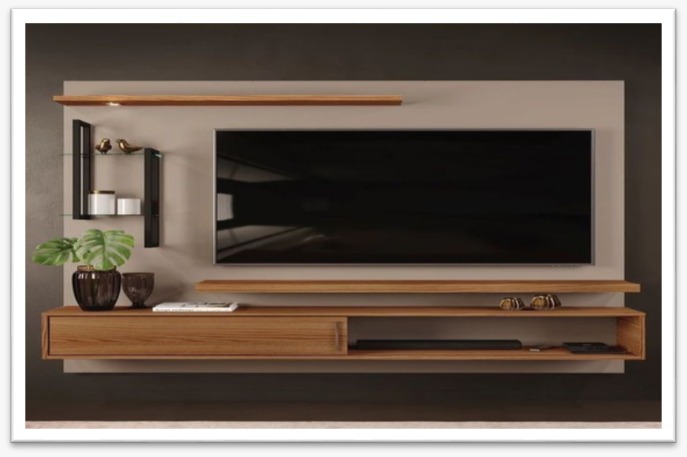

Providing and fixing of TV bottom box unit made of 18mm ply wood outer frame and inner
partition, 6mm plywood fix outer backsheet, the box 16'' depth and 12'' height fixed with
18mm plywood shutters with 0.8mm laminate outer surface and 0.8mm on inner side as per the
given design shutter or drawer to be fixed to be fixed with hinges & telescopic channel.
0.00
2
Wall Paper
Providing wall paper fixed on the wall as per the required area.
0.00
3

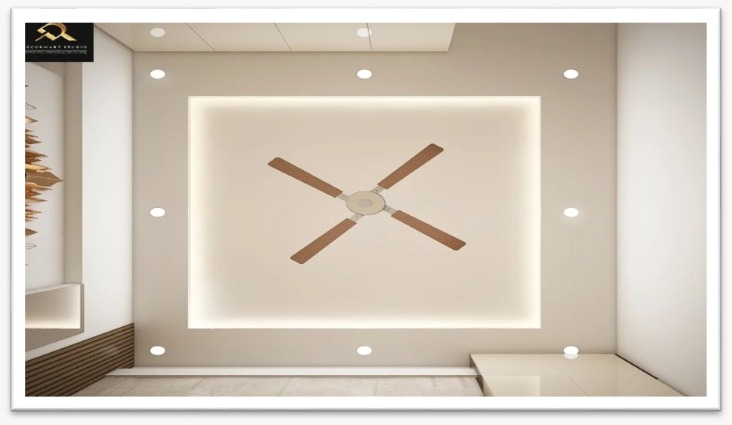

False Ceiling
Providing and fixing 12.5mm Thk. Gypsum board on metallic grid. The grid shall consist of
the following components. Regular channel, hanger, Cleat. Finally, the 12.5 mm thk. Gypsum
boards shall be fixed to the metal frames and the tapered/square edges of the boards shall
be finished to a flush joint with requisites filler, paper tapes,
suitable for Gypsum plaster boards finally finished.
0.00
4
pooja unit
Providing and fixing box Wardrobe Made of 18mm ply wood and 6 mm ply wood backing 16'' depth and 84'' height. 2 nos drawers will be provided with lock .
the shutters will be of 18mm plywood with 1mm laminate CNC cutting shutters outer surface 1mm laminate as per the outer side and 0.8mm laminate on inner side.
0.00
Section -B-Bedroom 1
5

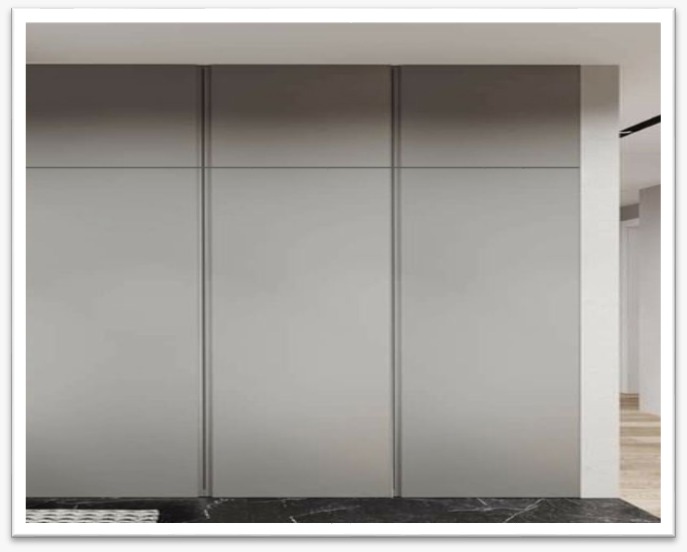

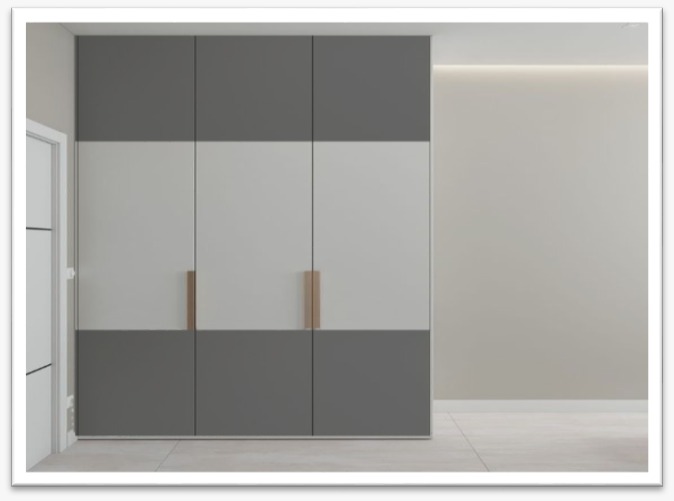

Wardrobe
Providing and fixing box Wardrobe Made of 18mm plywood and 6 mm ply wood backing 22'' depth and
84'' height .two drawers will be provided with lock .the shutter will be of 18mm plywood with
0.8mm laminate on outer side and 0.8mm laminate on inner side.
0.00
6
Loft
Providing and fixing of frame type loft made of 18mm ply height to be celling the shutter will
be of 18mm ply with 0.8mm laminated on outside and 0.8mm inner side fixed with hinges.
0.00
7
Dressing Unit
Providing and fixing Dressing Unit including of labour cost.
0.00
Section -C-Bedroom 2
8
Wardrobe
Providing and fixing box Wardrobe Made of 18mm plywood and 6 mm ply wood backing 22'' depth
and 84'' height .two drawers will be provided with lock .the shutter will be of 18mm plywood
with 0.8mm laminate on outer side and 0.8mm laminate on inner side.
0.00
9
loft
Providing and fixing box Wardrobe Made of 18mm plywood and 6 mm ply wood backing 22'' depth and
84'' height .two drawers will be provided with lock .the shutter will be of 18mm plywood with
0.8mm laminate on outer side and 0.8mm laminate on inner side.
0.00
10
Study Table
Providing and fixing study table well as per designs finished .
Section -D-Kitchen

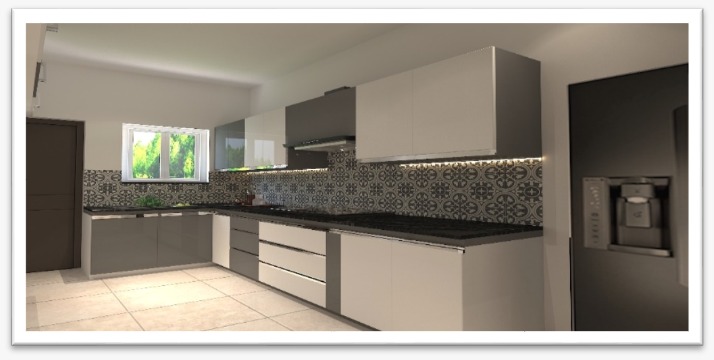

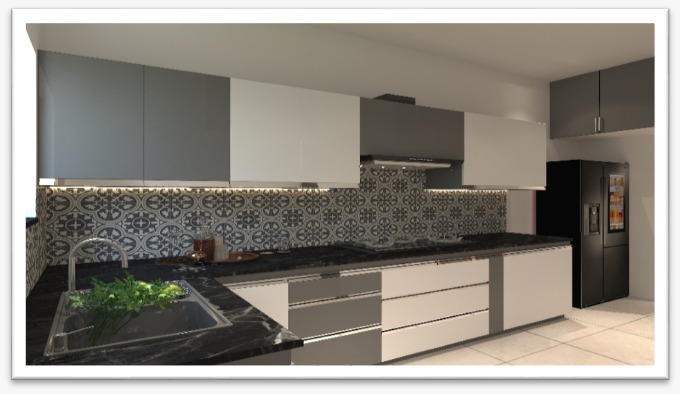

11
Wall Unit
Providing and fixed of kitchen wall box unit made of 18mm plywood 13'' depth and 27''
height fixed with aluminium profile shutteres with 18mm ply wood shutteres with 0.8mm laminate
on the outer side and 0.8mm on inner side as per the given design shutter to be fixed with
hinges.
0.00
12
Bottom Unit
Providing and fixed of kitchen wall box unit made of 18mm plywood 13'' depth and 27''
height fixed with aluminium profile shutteres with 18mm ply wood shutteres with 0.8mm laminate
on the outer side and 0.8mm on inner side as per the given design shutter to be fixed with
hinges.
0.00
13
Kitchen Accessories
cuttlery, cup & sasar, plates,oil pulloute,2nos plain basket
20000
Total Amount
20000
SPECIFICATION
Kitchen Bottom unit only used to be signature / woodvibe plywood ISI303 Grade
.
All Wardrobs and Loft
units are used Commercial MR Grade Plywood.
All inner laminate matte finish 0.8mm, outer laminate 0.8mm water proof Merino, Century, Virgo brand.
All Hardware HEBLO & WOODS.
Loft handle is charged 100/- and Wardrobe Handle is charged 200/- these are included as quote.
Drawer telescopic channels & hinches without softcloser.
