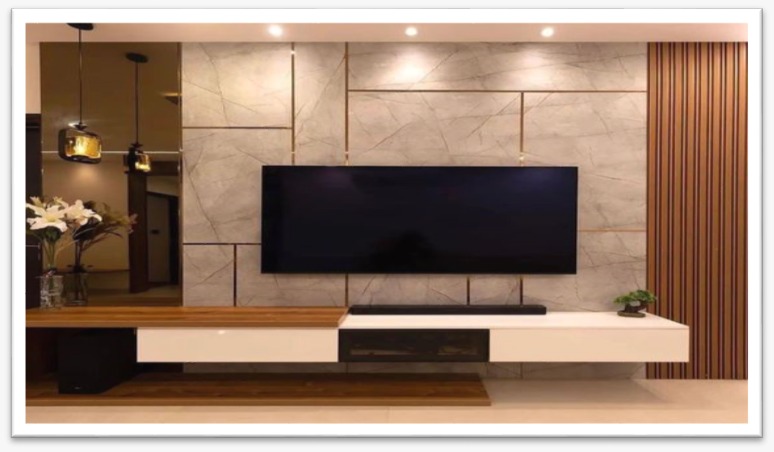

Providing and fixing of TV unit with 12mm plywood of louvers paneling on the wall, they
paneling will be finished by 1mm laminated, and bottom unit to be made of 18mm plywood with , 6mm plywood backing, the bottom unit will be of drawer type and box type with laminate
finish as required area only.
0.00
2

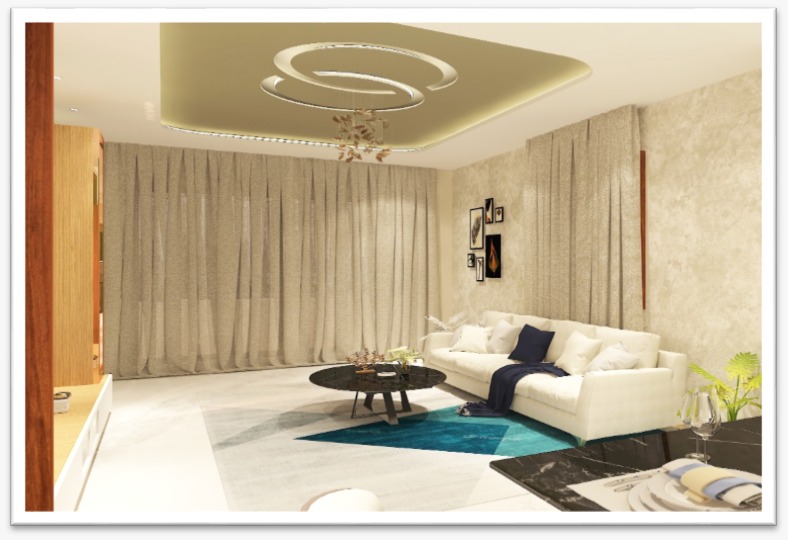

False Ceiling

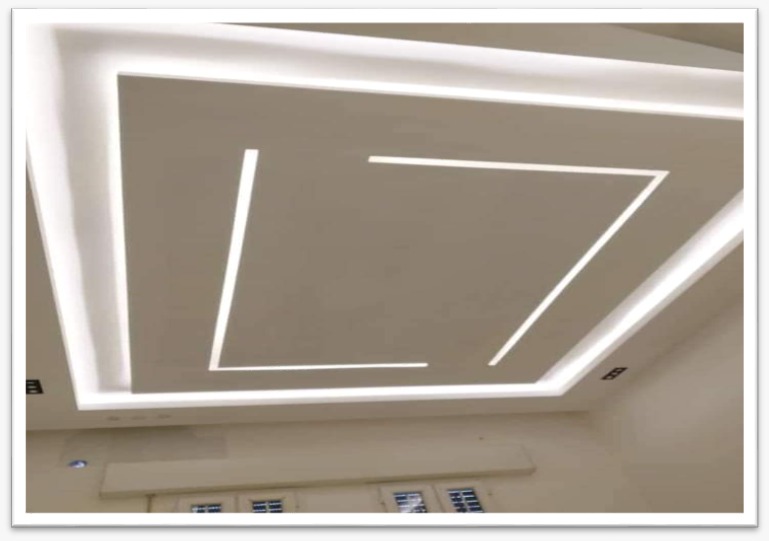

Providing and fixing 12.5mm Thk. Gypsum board on metallic grid. The grid shall consist of
the following components. Regular channel, hanger, Cleat. Finally, the 12.5 mm thk. Gypsum
boards shall be fixed to the metal frames and the tapered/square edges of the boards shall
be finished to a flush joint with requisites filler, paper tapes, finisher and primer
suitable for Gypsum plaster boards finally finished.
0.00
3
pooja unit
Providing and fixing box Wardrobe Made of 18mm ply wood and 6 mm ply wood backing 16'' depth and 84'' height. 2 nos drawers will be provided with lock .
the shutters will be of 18mm plywood with 1mm laminate CNC cutting shutters outer surface 1mm laminate as per the outer side and 0.8mm laminate on inner side.
0.00
Section -B-Dining Hall
4
crockery Unit
Providen fixing box type crockery unit made of 18mm plywood and 6mm plywood backing 16inch depth 84 hegiht bottom unit 4 doors and 4 drawer will be
providing top unit shutter aluminium profile frame with tinted glass.
0.00
Section -C-Master Bedroom 1
5

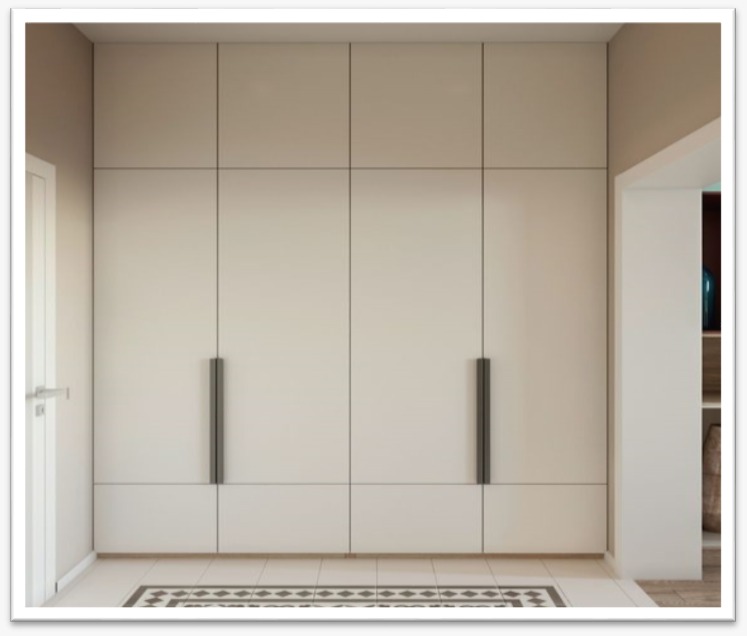

Wardrobe

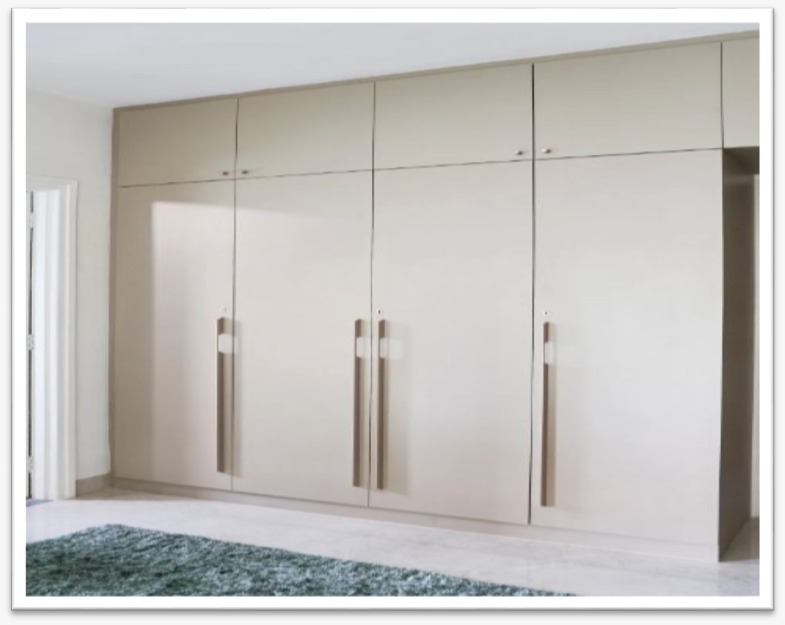

Providing and fixing box Wardrobe Made of 18mm plywood and 6 mm ply wood backing 22'' depth
and 84'' height .two drawers will be provided with lock .the shutter will be of 18mm plywood
with 1mm laminate on outer side and 0.8mm laminate on inner side.
0.00
6
Loft
Providing and fixing of frame type loft made of 18mm ply height to be celling the shutter
will be of 18mm ply with 1 mm laminated on outside and 0.8mm inner side fixed with hinges.
0.00
7

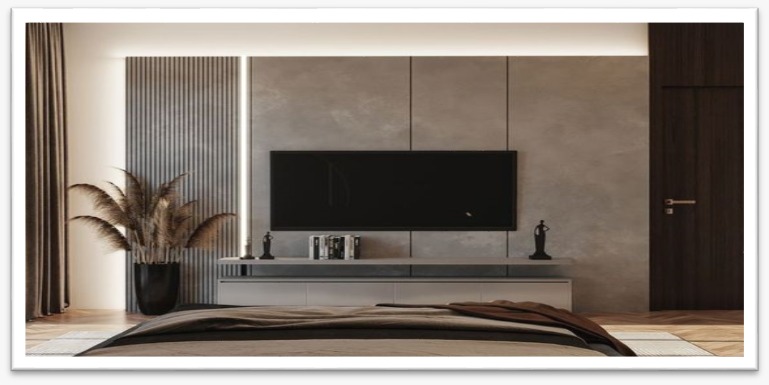

TV Unit
Providing and fixing of TV unit with 12mm plywood of paneling on the wall, they paneling
will be finished by 1mm laminated, and bottom unit to be made of 18mm plywood with ,6mm
plywood backing, the bottom unit will be of drawer type and box type with laminate finish as
required area only.
0.00
8
False Ceiling

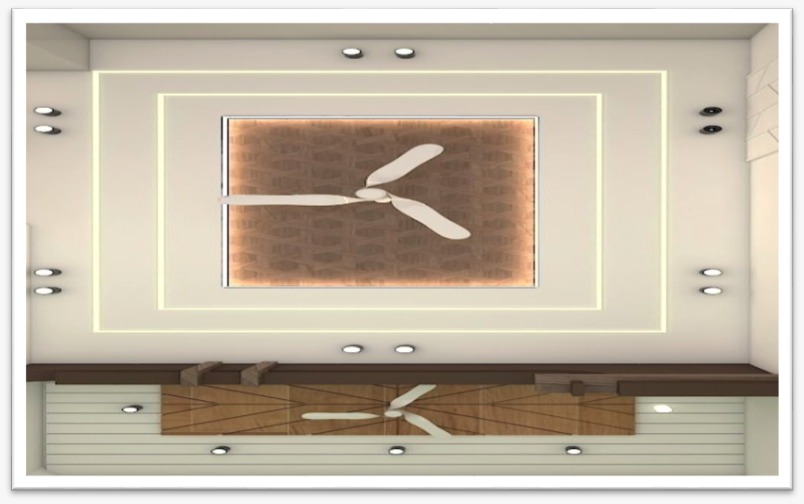

Providing and fixing 12.5mm Thk. Gypsum board on metallic grid. The grid shall consist of
the following components. Regular channel, hanger, Cleat. Finally, the 12.5 mm thk. Gypsum
boards shall be fixed to the metal frames and the tapered/square edges of the boards shall
be finished to a flush joint with requisites filler, paper tapes, finisher and primer
suitable for Gypsum plaster boards finally finished.
0.00
Section -D-Son Bedroom
9

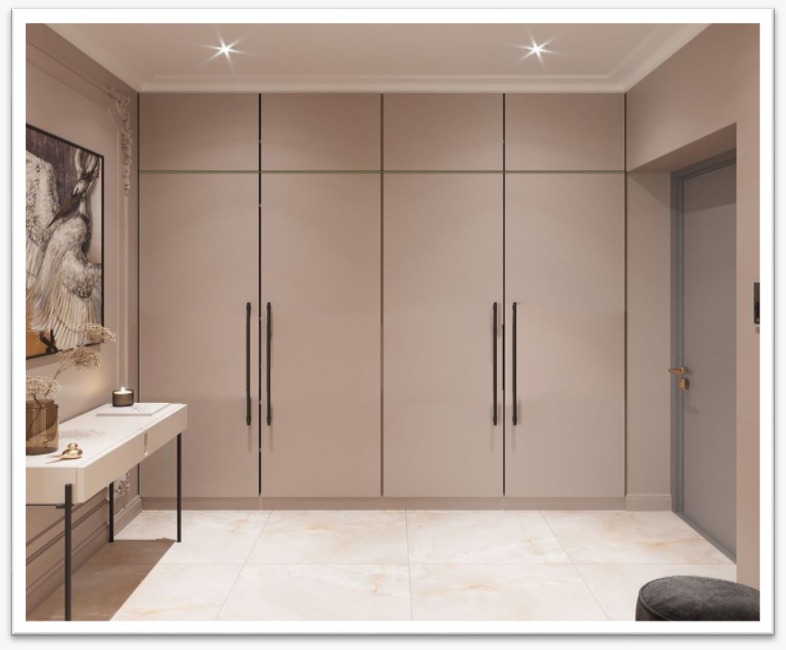

Wardrobe
Providing and fixing box Wardrobe Made of 18mm plywood and 6 mm ply wood backing 22'' depth
and 84'' height .two drawers will be provided with lock .the shutter will be of 18mm plywood
with 1mm laminate on outer side and 0.8mm laminate on inner side.
0.00
10
Loft
Providing and fixing of frame type loft made of 18mm ply height to be celling the shutter
will be of 18mm ply with 1 mm laminated on outside and 0.8mm inner side fixed with hinges.
0.00
11
TV Unit
Providing and fixing of TV unit with 12mm plywood of paneling on the wall, they paneling
will be finished by 1mm laminated, and bottom unit to be made of 18mm plywood with, 6mm
plywood backing, the bottom unit will be of drawer type and box type with laminate finish as
required area only.
0.00
12
False Celling
Providing and fixing 12.5mm Thk. Gypsum board on metallic grid. The grid shall consist of
the following components. Regular channel, hanger, Cleat. Finally, the 12.5 mm thk. Gypsum
boards shall be fixed to the metal frames and the tapered/square edges of the boards shall
be finished to a flush joint with requisites filler, paper tapes, finisher and primer
suitable for Gypsum plaster boards finally finished.
13

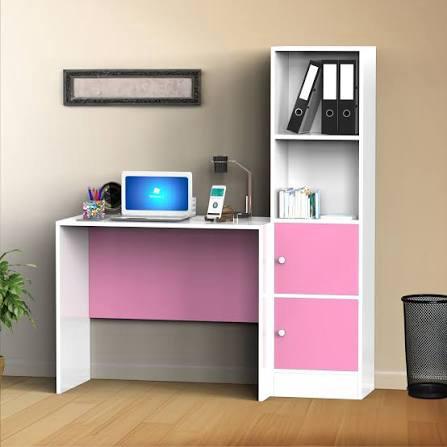

Study Table
Providing and fixing study table well as per designs finished .
Section -E- Daughter Bedroom
14
Wardrobe
Providing and fixing box Wardrobe Made of 18mm plywood and 6 mm ply wood backing 22'' depth
and 84'' height .two drawers will be provided with lock .the shutter will be of 18mm plywood
with 1mm laminate on outer side and 0.8mm laminate on inner side.
0.00
15
Loft
Providing and fixing of frame type loft made of 18mm ply height to be celling the shutter
will be of 18mm ply with 1 mm laminated on outside and 0.8mm inner side fixed with hinges.
0.00
16
False Celling
Providing and fixing 12.5mm Thk. Gypsum board on metallic grid. The grid shall consist of
the following components. Regular channel, hanger, Cleat. Finally, the 12.5 mm thk. Gypsum
boards shall be fixed to the metal frames and the tapered/square edges of the boards shall
be finished to a flush joint with requisites filler, paper tapes, finisher and primer
suitable for Gypsum plaster boards finally finished.
0.00
17

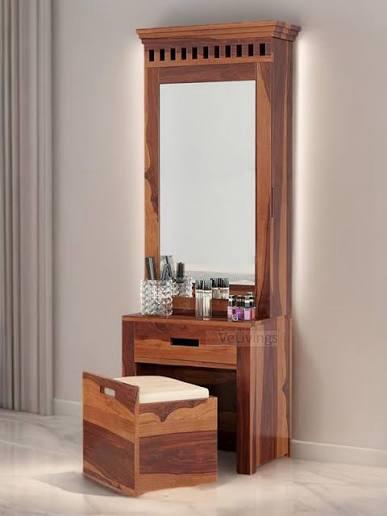

Dressing Unit
Providing and fixing Dressing Unit including of labour cost.
0.00

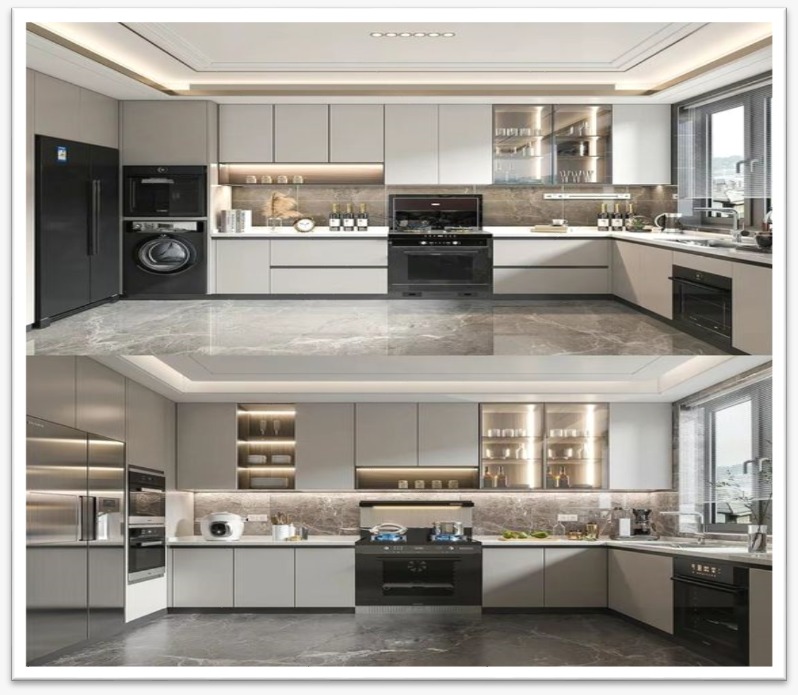

Section -F- Kitchen
18
Wall Unit
Providing and fixed of kitchen wall box unit made of 18 mm ply wood 13'' depth and 27''
height fixed with aluminium profile shutteres with 18mm ply wood shutteres with 1mm laminate
on the outer side and 0.8mm on inner side as per the given design shutter to be fixed with
hinges.
0.00
19
Bottom Unit
Providing and fixing of kitchen bottom box unit made of 18mm ply wood out fream and inner
partition, 6mm plywood fix outer backsheet, the box 24'' depth and 33'' height fixed with
18mm plywood shutters with 1mm laminate outer surface and 0.8mm on inner side as per the
given design shutter to be fixed with higes & telescopic channel.
0.00
20
Tall Unit
Providing and fixing of Kitchen storage made of 18mm plywood and 6mm plywood backing, 0.8mm
laminate on the inner side Outside surface will be 1 mm laminate finish, door will be fixed
with hinges.
0.00
21
Kitchen Accessories
cuttlery, cup & sasar, plates,oil pulloute,2nos plain basket
70000
Total Amount
70000
SPECIFICATION
Kitchen Bottom unit and
Wall unit plywood to be used Century waterproof Plywood ISI 710 grade original logo.
All Wardrobs and Loft
units are used Century Commercial MR Grade Plywood.
Outer laminate 1mm water
proof Merino, Century, Virgo brand.
All Hardware fittings
EBCO & HETTICH brand.
Loft handle is charged
150/- and Wardrobe Handle is charged 300/- these are included as quote.
